CW‑6225 Series

Product Model:
Views:68
Update Time:2026-04-17

Product Introduction
Service Support
Online Message
Recommended Products

Product Introduction:

CW‑6225 epoxy resin injection compound adopts advanced foreign technologies for epoxy resin products used in APG pressure gel equipment by numerous domestic switch insulator manufacturers. It is suitable for manufacturing insulating products via APG process, such as cable junction box terminals, SF6 load‑switch housings, sensors and instrument transformers.

Quality Indicators:

Project		Component A	Component B
Appearance		Light‑Yellow Liquid	Yellow Liquid
Viscosity	25℃ mpa.s	8000~15000	300~1500
Specific Gravity	23℃	1.10~1.20	1.15~1.25

Operating Conditions:

Material	CW-6225A	CW-6225B	Filler
Mixing Ratio	100	80~100	300~350
Curing Condition	100℃ for 5 hours +140℃ for 8~12 hours
Weigh correctly by weight ratio, stir thoroughly and vacuum‑defoam for 90 min before injection.

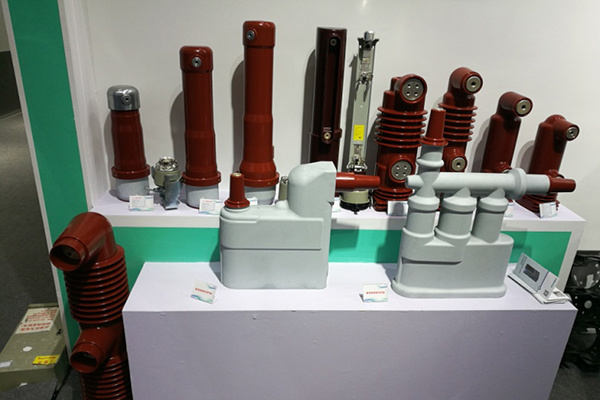

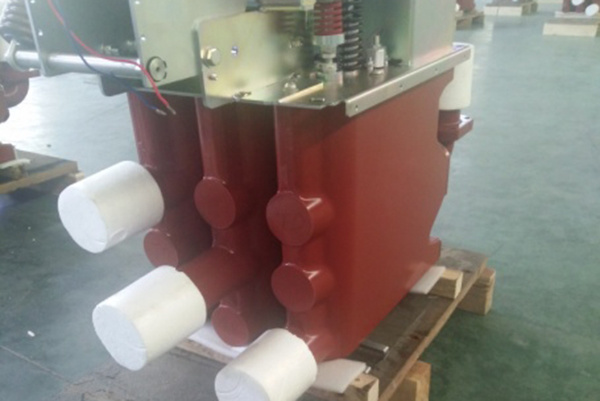

Practical Application Image Display:
