Products
Product Introduction:

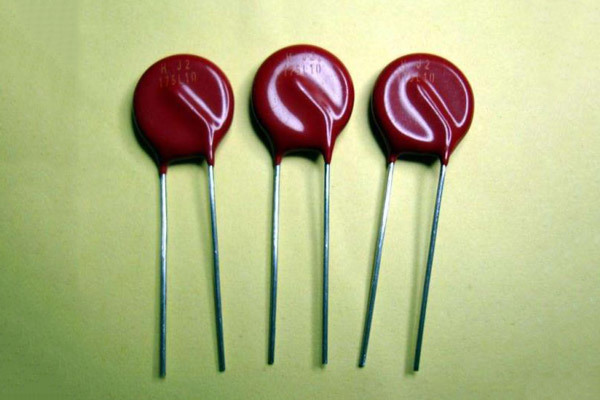

Flame‑retardant epoxy encapsulating compound is suitable for impregnation and encapsulation of capacitors, inductors and resistors, especially for encapsulation of high‑voltage components for color TVs.
Product Features:
1. Long pot life.
2. Wide process window, compatible with automatic and manual production lines.
3. Curable at room or medium‑low temperature with bright surface.
4. Good electrical insulation performance.
Technical Indicators:
Project | Base Agent | Curing Agent | |

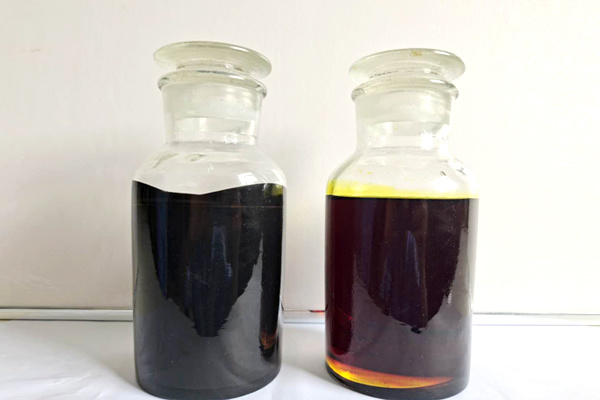

Appearance | -- | Viscous Liquid* | Brown Liquid |
Viscosity (23℃) | mPa.s | — — | 50~200 |
* Color adjustable per customer requirements;
Application Process:
1. Mixing ratio: Base agent : Curing agent =100g:20g.

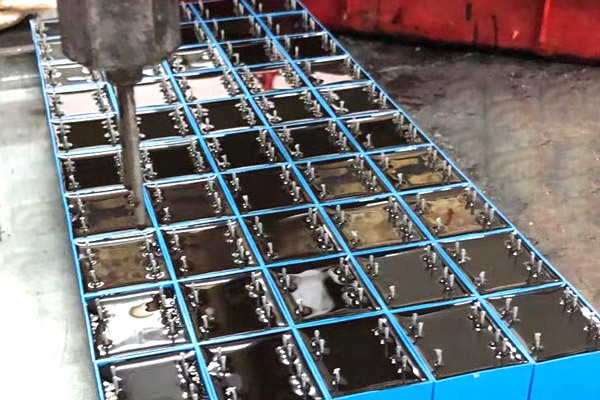

2. Operating process: Add curing agent proportionally into base agent, stir, vacuum‑defoam, vacuum‑impregnate, cure under heating or at room temperature.
3. Curing condition: 80℃/2h or room temperature (25℃) ≥24h.
