CW‑630 Iron‑Core Epoxy

Product Name:

Base Agent CW‑630 Iron‑Core Epoxy

Curing Agent CW‑630‑983 Curing Agent

Overview:

This two‑component epoxy resin system is liquid at room temperature.

Mainly applied to surface protection and fastening of iron‑core silicon‑steel sheets with favorable processing performance.

Features:

1. Appearance: Bright, flat and bubble‑free coating with strong adhesion and good elasticity;

2. Process performance: Easy operation, fast curing, curable at room temperature or under heating;

3. Physical performance: Capable of enduring long‑term transformer operation with stable performance and protecting transformer iron cores;

4. The product has flame‑retardant properties.

Basic Properties:

* The color and curing agent of this product can be adjusted according to customers’ actual requirements.

Basic Process Requirements:

1. Mixing ratio: Component A : Component B =100g：20g

2. Operating process: Weigh accurately per mixing ratio, stir thoroughly, then apply by brushing.

The mixing batch is generally 200～500 g according to actual consumption and ambient temperature.

3. Curing condition: 24 hours at room temperature or 40℃/4h.

Note) If sediment exists in Component A or B, stir each component thoroughly before use.

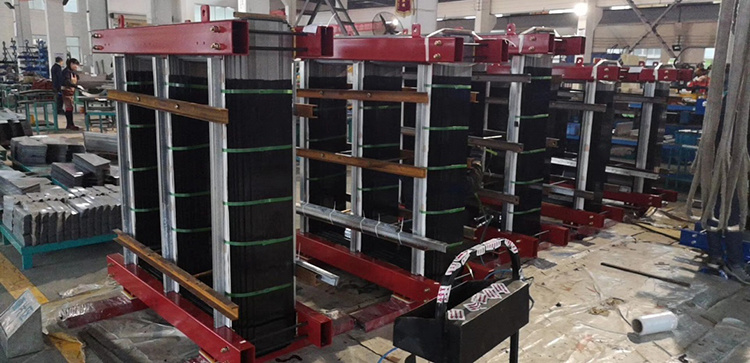

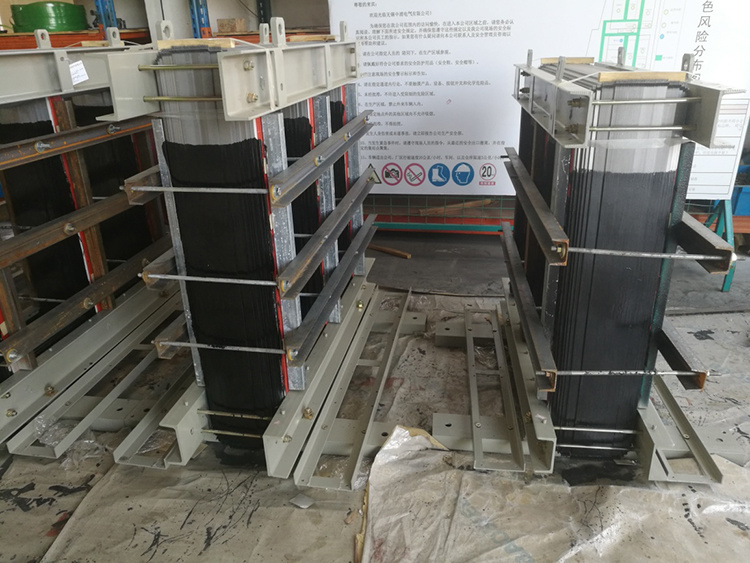

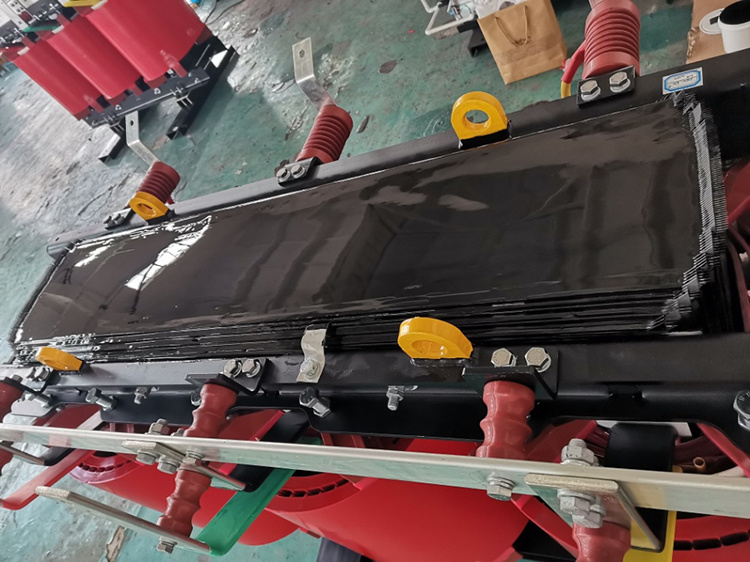

Application Example Image Display:
